System Design Deep Dive – Part 2: Designing and Estimating Real-World Systems

Designing scalable, reliable systems isn’t just about writing code or picking the right tools. It’s about making thoughtful decisions at every layer of the architecture—from the initial idea to detailed class structures.

In this second part of the System Design Deep Dive series, we’ll walk through the four critical pillars of practical system design:

1. Asking Clarifying Questions – Define the problem before you solve it.
2. Back-of-the-Envelope Estimation – Will your system scale under expected load?
3. High-Level Design (HLD) – What are the core components and how do they interact?
4. Low-Level Design (LLD) – What do the data models, classes, and interfaces look like?

Then, we'll apply these principles to design a real-world system: A Distributed Caching System.

Asking Clarifying Questions

Before you dive into diagrams or code, ask questions. This step is often overlooked, but it's where the problem space gets clearly defined. You’ll uncover constraints, expectations, and usage patterns.

Key Clarification Areas

• Who are the users?
• What scale are we expecting? (Daily traffic, data size)
• What consistency and latency requirements do we have?
• What are the availability/uptime expectations?
• Are there any tech stack restrictions?

Back-of-the-Envelope Estimation

Once the requirements are clear, the next step is estimating scale and resource needs. These rough numbers help guide architecture decisions early.

Estimate for

• Daily active users (DAU)
• Requests/Queries per second (R/QPS)
• Data size
• Bandwidth
• Storage
• Read/Write ratios

High-Level Design (HLD)

High-Level Design focuses on macro-architecture: components, protocols, and how they interact. You're answering "What are the parts?" and "How do they communicate?"

HLD Must Include

• Core components and responsibilities
• Data flow between components
• Communication patterns (REST, gRPC, Kafka, etc.)
• Scalability and fault tolerance
• Caching, logging, monitoring

Low-Level Design (LLD)

Low-Level Design zooms into classes, interfaces, database schemas, and how each part is implemented.

LLD Must Include

• Class and method structures
• Interface definitions
• Data structures and models
• Database schema (if applicable)
• Error handling and edge cases
• Caching logic (e.g., TTL, eviction)
• Performance optimizations

Example: Designing a Distributed Caching System

Imagine you're asked to design a Distributed Caching System like Redis or Memcached — something that can scale, serve high throughput, and tolerate failures.

Clarifying Requirements

Before jumping into design, clarify the following:

• Is the cache write-through or write-back?
• Is it for session data, database acceleration, or static asset caching?
• What are the consistency guarantees? Can we tolerate stale data?
• Is eviction required (e.g., LRU, LFU)?

• Should the cache be distributed across data centers?

Estimating System Load

Let’s estimate for a caching system used to serve product data on an e-commerce platform.

These estimations play a critical role in shaping key design decisions—such as selecting the right in-memory caching technology (e.g., Redis, Memcached), determining optimal memory allocation per node, designing an effective sharding and replication strategy, and choosing appropriate eviction policies—to ensure the cache is fast, scalable, and fault-tolerant under real-world load.

High-Level Architecture

Components Overview

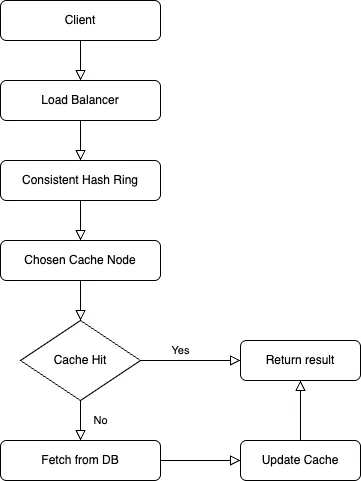

Sample Data Flow (Read Path)

Key Architectural Decisions

1. Consistent Hashing

Ensures minimal key movement when nodes are added/removed.

2. Replication (Optional)

To ensure high availability, cache nodes may replicate data to a backup node.

3. Eviction Policy

Define how stale data is evicted. Common: LRU, LFU, TTL-based.

4. Asynchronous Writes

For write-through cache: write to DB and cache simultaneously.
For write-behind (write-back): write to cache first, persist to DB later asynchronously.

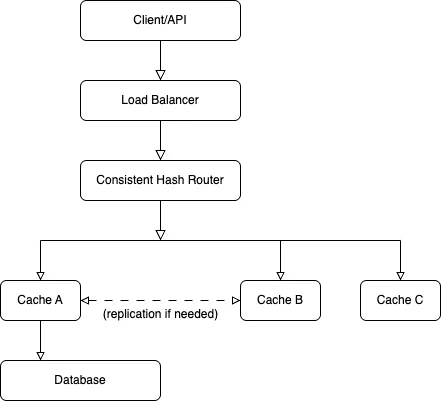

High-Level Architecture Diagram

Low-Level Implementation

Let’s walk through a simplified Java-based design of a distributed in-memory cache node:

Core Interfaces and Classes

Cache Interface

public interface Cache {
    String get(String key);

    void put(String key, String value, long ttlMillis);

    void delete(String key);
}

CacheEntry with TTL Support

public class CacheEntry {
    String value;
    long expiryTime;

    public CacheEntry(String value, long ttlMillis) {
        this.value = value;
        this.expiryTime = System.currentTimeMillis() + ttlMillis;
    }

    public boolean isExpired() {
        return System.currentTimeMillis() > expiryTime;
    }
}

In-Memory Cache Implementation (With TTL + LRU)

public class LRUCache implements Cache {
    private final int capacity;
    private final Map<String, CacheEntry> cache;

    public LRUCache(int capacity) {
        this.capacity = capacity;
        this.cache = new LinkedHashMap<>(capacity, 0.75f, true) {
            protected boolean removeEldestEntry(Map.Entry<String, CacheEntry> eldest) {
                return size() > LRUCache.this.capacity;
            }
        };
    }

    public synchronized String get(String key) {
        CacheEntry entry = cache.get(key);
        if (entry == null || entry.isExpired()) {
            cache.remove(key);
            return null;
        }
        return entry.value;
    }

    public synchronized void put(String key, String value, long ttlMillis) {
        cache.put(key, new CacheEntry(value, ttlMillis));
    }

    public synchronized void delete(String key) {
        cache.remove(key);
    }
}

Consistent Hashing Router

public class ConsistentHashRouter {
    private TreeMap<Integer, Cache> ring = new TreeMap<>();
    private List<Cache> nodes;

    public ConsistentHashRouter(List<Cache> nodes) {
        this.nodes = nodes;
        for (Cache node : nodes) {
            int hash = node.hashCode();
            ring.put(hash, node);
        }
    }

    public Cache getNode(String key) {
        int hash = key.hashCode();
        SortedMap<Integer, Cache> tail = ring.tailMap(hash);
        if (!tail.isEmpty()) return tail.get(tail.firstKey());
        return ring.firstEntry().getValue();
    }
}

Database Fallback (Optional)

public class CacheWithDBFallback implements Cache {
    private final Cache localCache;
    private final DatabaseClient db;

    public CacheWithDBFallback(Cache localCache, DatabaseClient db) {
        this.localCache = localCache;
        this.db = db;
    }

    @Override
    public String get(String key) {
        String value = localCache.get(key);
        if (value == null) {
            value = db.get(key);
            if (value != null) {
                localCache.put(key, value, 60_000); // cache for 1 min
            }
        }
        return value;
    }

    @Override
    public void put(String key, String value, long ttlMillis) {
        db.put(key, value);
        localCache.put(key, value, ttlMillis);
    }

    @Override
    public void delete(String key) {
        db.delete(key);
        localCache.delete(key);
    }
}

Other LLD Considerations

Final Thoughts

Whether you're designing a distributed cache, notification system, or message broker, the same four pillars apply:

• Clarify the Problem
• Estimate the Load
• Architect at a High Level
• Detail the Code with LLD

By combining these systematically, you make architectural decisions that are informed, scalable, and explainable—critical for interviews and real-world systems alike.

In the next part of this series, we’ll explore core infrastructure components like CDNs, Distributed Caching, Bloom Filters, and Database Sharding that power scalable systems at global scale.
